SKC62 Siemens Electro-hydraulic actuators for valves

SKC62 Siemens Electro-hydraulic actuators for valves

Product information：

Brand：Siemens                              Model number：SKC62

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: Germany

Price: Please contact us                   Product weight：10kg

HS: 8517623990

Product technial information：

·

Electro-hydraulic actuators; no maintenance required

·

Pump, pressure cylinder and piston to open valve

·

Return spring and bypass valve to close valve

·

Manual adjuster and position indication

·

SK...62... with spring-return function to DIN 32730

·

Standard electronics:

– Choice of control signal (DC 0 ... 10 V / 4 ... 20 mA / 0 ... 1000 W)

– Choice of flow characteristic (equal-percentage / linear)

– Position feedback

– Stroke calibration

– LED status indication

– Override control via terminal Z

·

SK...62UA enhanced functions:

– Stroke limit control

– Sequence control with adjustable starting position and operating range

– Choice of direction of operation (direct acting / reverse acting)

·

Mounting space for auxiliary switch

·

Stem heater can be fitted if required

·

Mechanical stroke inverter can be installed if required (SKB... only)

·

SK...62U and SK...62UA actuators are UL-approved

·

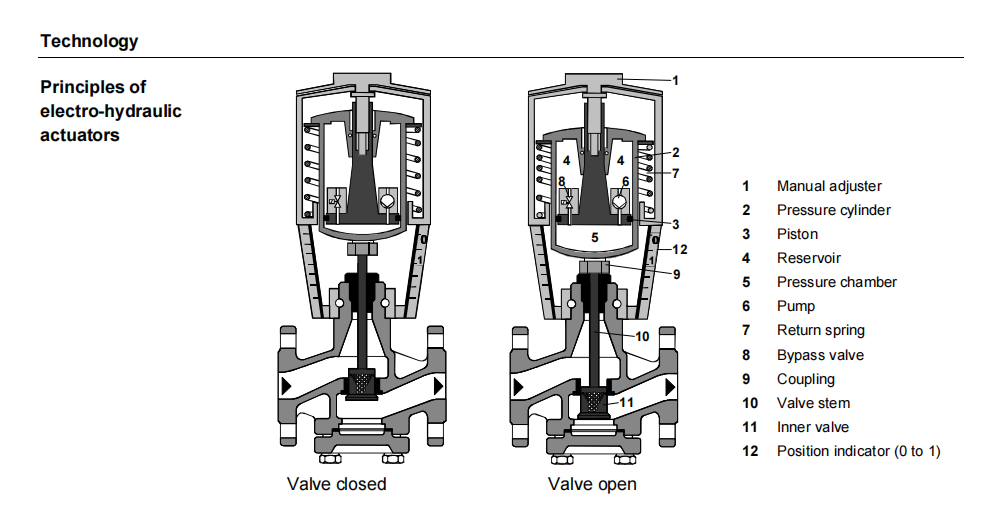

Signal input Y increasing: The pump (6) forces hydraulic oil from the reservoir (4)

into the pressure chamber (5) thereby generating the stroke: the valve stem (10) is

retracted and the valve plug opens (11).

·

Signal input Y decreasing: The bypass valve (8) opens, allowing the hydraulic oil

to flow back from the pressure chamber (5) into the reservoir (4) via the return spring

(7). The valve stem (10) extends and the valve plug closes (11).

·

Signal input Y constant: The actuator and valve hold the current stroke position.

Supply volta
