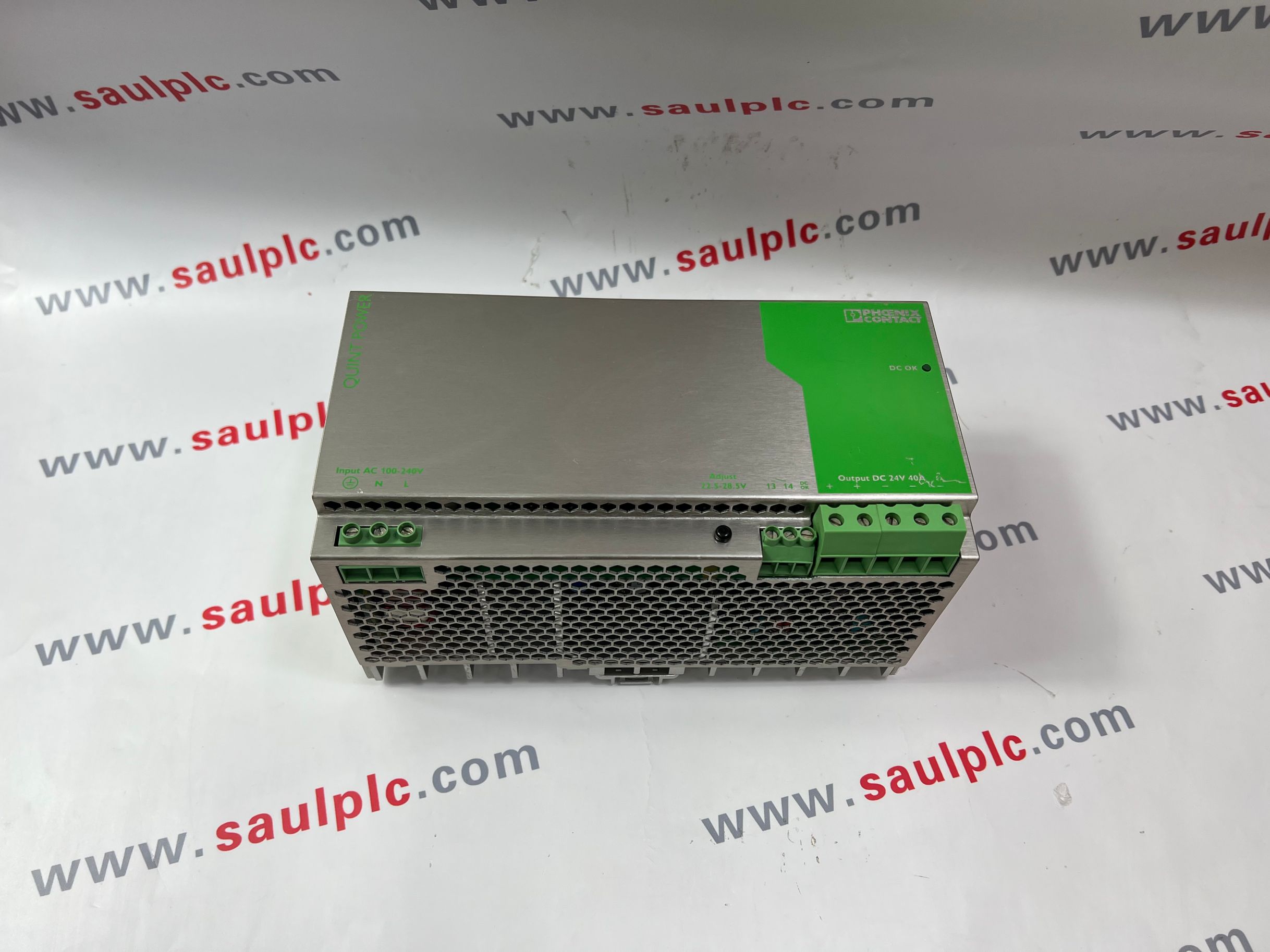

QUINT-PS-100-240AC/24DC/40 2938879 Phoenix Power supply unit

Degree of protection

IP20

Ambient temperature (operation)

-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Max. permissible relative humidity (operation)

95 % (at 25 °C, non-condensing)

Climatic class

3K3 (in acc. with EN 60721)

Degree of pollution

2

Nominal input voltage range

110 V AC ... 240 V AC

Input voltage range

85 V AC ... 264 V AC (Derating < 100 V DC: 2.5%/V)

90 V DC ... 350 V DC (Derating < 110 V DC: 2.5%/V)

AC frequency range

45 Hz ... 65 Hz

Frequency range DC

0 Hz

Current consumption

approx. 12.5 A (120 V AC)

approx. 4.5 A (230 V AC)

Nominal power consumption

1051 W

Inrush current

< 15 A (typical)

Mains buffering time

> 20 ms (120 V AC)

> 20 ms (230 V AC)

Input fuse

20 A (fast blow, internal)

Recommended breaker for input protection

16 A ... 20 A (Characteristics B, C, D, K)

Type of protection

Transient surge protection

Protective circuit/component

Varistor

Nominal output voltage

24 V DC ±1 %

Setting range of the output voltage (USet)

22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted)

Nominal output current (IN)

40 A (-25 °C ... 60 °C)

POWER BOOST (IBoost)

45 A (-25°C ... 40°C permanent )

Derating

60 °C ... 70 °C (2.5%/K)

Connection in parallel

Yes, for redundancy and increased capacity

Connection in series

yes

Feedback voltage resistance

35 V DC

Protection against overvoltage at the output (OVP)

≤ 35 V DC

Max. capacitive load

unlimited

Active current limitation

Approx. IBOOST = 45 A (for short-circuit)

Control deviation

< 1 % (change in load, static 10 % ... 90 %)

< 2 % (change in load, dynamic 10 % ... 90 %)
