MP2511 MICRO SWITCH Basic switch

MP2511 MICRO SWITCH  Basic switch

Product information：

Brand：MICRO SWITCH                              Model number：MP2511

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: Germany

Price: Please contact us                   Product weight：0.36kg

HS: 8517623990

Product technial information：

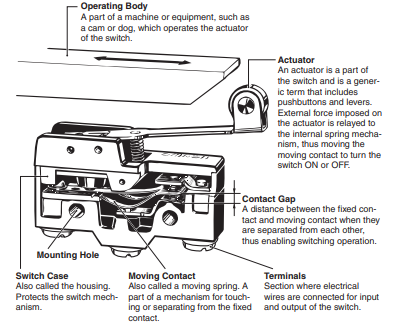

The operating

characteristics of Basic

Switches are expressed

in terms of force vs.

stroke. The figure at the

right shows this

relationship. The stroke

(i.e., actuator

movement) is given on

the horizontal axis and

the force applied to the

actuator is given on the

vertical axis. The

following describes the

characteristics of Basic

Switches.

1. The operating

position (OP) and

releasing position

(RP) of the switch

can be determined

because the

switch makes a

switching sound

as the force

suddenly

fluctuates when

the switch operates and resets.

2. Movement differential makes Basic Switches suitable as

detection switches in equipment because the moving

contact is stable at either fixed contact even if the operating

body that operates the actuator wobbles or moves up and

down to some degree.

3. Quickly performing contact switching reduces arc

connection time during current switching, which enables

switching of large loads for a small switch.

The relation between the stroke and the operating force is shown

in the figure above. The contacting force at the free position

decreases as the actuator is pressed in, and reaches zero when

it is pressed to the OP. The moving contact inverts from the

normally closed (NC) side to the normally open (NO) side, and a

contacting force is immediately produced. The NO-side

contacting force increases when the actuator is further pressed

in. When the actuator returns, a contacting force is produced on

the NC side after the NO side becomes zero.
