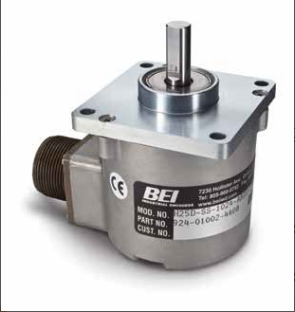

H25D-SS-10.000-T5-ABC-28V/V-SM18-S BEI INCREMENTAL OPTICAL ENCODER

Inquire Now +

PRODUCT DETAIL

Product information：

Brand：BEI Model number：H25D-SS-10

Condition：new Warranty: 12 month

Lead Time：3-day working da Country of origin: France

Price: Please contact us Product weight：0.57kg

HS: 8517623990

Product technial information：

Shaft Diameter	3/8”nominal (1/2”as special feature)
Flat On Shaft	3/8”Shaft: 0.80 long X 0.03”deep; 1/2”Shaft: 0.80 long X 0.04”deep (1/2’’shaft w/flat must be ordered as special feature)
Shaft Loading	3/8”shaft: Up to 40 pounds axial and 35 pounds radial; 1/2”shaft: Up to 90 pounds axial and 80 pounds radial
Shaft Runout	0.0005 T.I.R. at midpoint regardless of shaft diameter
Starting Torque at 25°C	Without shaft seal 1.0 in-oz (max); With shaft seal 2.5 in-oz (max); 1/2”shaft with shaft seal: 3.5 in-oz (max)
Bearings	Class ABEC 7 standard, ABEC 5 for 1/2”shaft
Shaft Material	416 stainless steel
Bearing Housing	Die cast aluminum with protective finish
Cover	Die cast aluminum
Bearing Life	2 X 108 revs (1300 hrs at 2500 RPM) at rated load 1 X 1010 revs (67,000 hrs at 2500 RPM) at 10% of rated load
Maximum RPM	12,000 RPM nominal, 8000 RPM with 1/2”shaft (see Frequency Response, below) 30,000 RPM available on units with 3/8”shaft—consult with factory
Moment of Inertia	4.1 X 10-4 oz-in-sec2; 5.2 X 10-4 oz-in-sec2 with 1/2”shaft
Weight	13 oz typical, 14.5 oz typical with 1/2”shaft

Delivery information：

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Transport: In Stock Ready for Shipment via DHL, TNT, FEDEX, UPS, ARAMEX and etc

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!! We Can transport to the world!!!

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.
