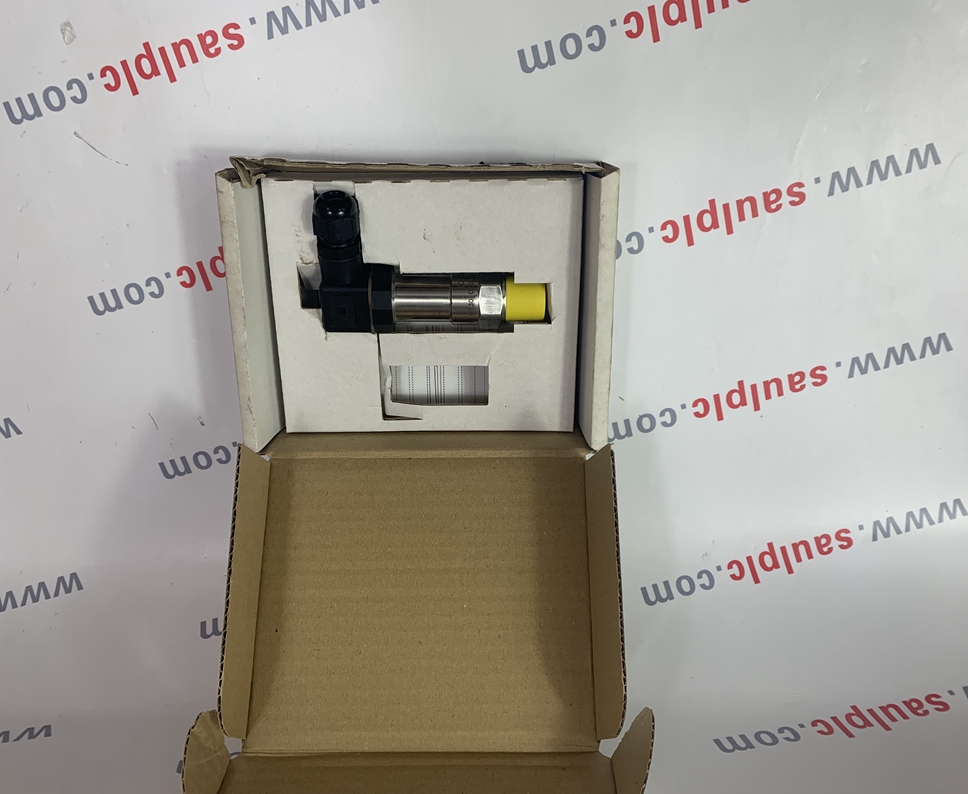

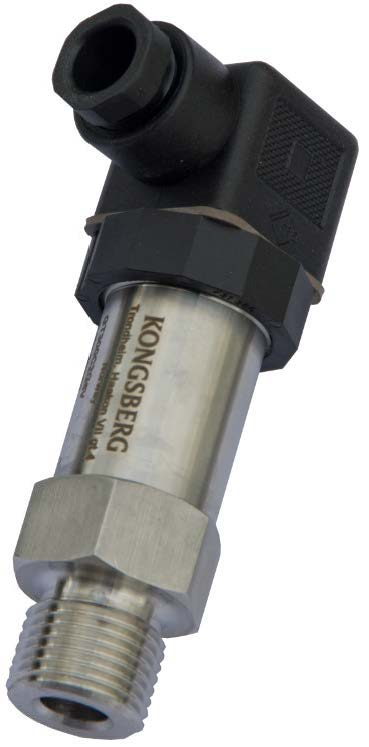

GT300C2G16V KONGSBERG Pressure Transmitter
Product information:
Brand:KONGSBERG Model number:GT300C2G16V
Lead Time:3-day working da Country of origin: Norway
Price: Please contact us Product weight:0.35kg
HS: 8517623990
Product technial information:
The GT300 Pressure Transmitter is a generalpurpose
transmitter for use in engine rooms and
other similar applications. The transmitter is
available as gauge and sealed gauge. With pressure
ranges up to 100 bar, and a 2-wire connection, 4 to
20 mA ouput signal.
The transmitter consists of a sensing element
together with an electronic unit encapsulated in the
sensor body. Pressure connection is made via
ISO228-G1/2A or ISO228-G1/4A at the lower end,
and electrical connection is made via a DIN
connector at the upper end of the transmitter. The
body is made of acid resistant steel.
The pressure transmitter is built around a dry,
robust sensor element, made of ceramic, with
internal strain gauge Wheatstone-bridge as a
converting element between pressure and electrical
signal. The signal given by this strain gauge is then
digitized and stored together with known applied
pressure and temperature. All this together forms a
unique tabular for each sensor, which is kept in
sensor memory for the sensor’s lifetime. This
digital compensation gives a possibility for
linearization and temperature compensation of each transmitter uniquely, based
on each element’s character. This enables a much
higher accuracy and temperature stability than with
former analogue sensors.
As the 96 % alumina membrane is resistant to most
chemicals, the process medium is in direct contact
with the measuring membrane, thus there is no
need for costly de-coupling in the form of a filling
liquid and second membrane. A filling liquid and a
second membrane can be a source of errors. This is
why dry capsule sensors have superior
specifications compared to wet capsule.
Delivery information:
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Transport: In Stock Ready for Shipment via DHL, TNT, FEDEX, UPS, ARAMEX and etc
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!! We Can transport to the world!!!
Contact information:
Contact person:Luna Chen
Email Address::sales6@saulplc.com
WhatApp: +86 13358378970
We look forward to your inquiry and will get back to you as soon as possible.
