805401-3S B/M805401-3S RELIANCE driver module

805401-3S B/M805401-3S RELIANCE driver module

Product information：

Brand：RELIANCE ELECTRIC                            Model number：805401-3S B/M805401-3S

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.35kg

HS: 8517623990

Product technial information：

Drive operation is adjusted by the parameters entered

through the keypad. The Regulator board accepts power circuit feedback signals and

an external speed reference signal, as well as data from an encoder that is attached to

the motor when set up for FVC regulation. The Regulator board provides:

• PWM gating signals to the IGBT power devices

Based on the output of the control loop, the regulator sends PWM gating signals

through the Current Feedback board to isolated drivers on the Gate Driver board.

These drivers switch the Insulated Gate Bi-polar Transistors (IGBTs), producing a

PWM waveform that corresponds to the speed (FVC regulation) or frequency (V/Hz

regulation) reference. The IGBTs can be switched at either a 2, 4, or 8 kHz carrier

frequency.

• Form A and B contacts for drive status indicators

The Form A and B contacts are under control of the user via programm

parameters. A Form A or B transition can indicate drive status. The contacts are

rated for 5 amps resistive load at 250 VAC/ 30 VDC and are made available through

the terminal strip.

• Display data for a four-character display and fourteen indicator LEDs

For a description of the keypad/display, refer to section 2.8.6. For operational

instructions.

• An analog output

The analog output is a scaled voltage (0-10 VDC) or current (4-20 mA) signal

proportional to either motor speed (RPM) or motor torque or current (%TORQUE).

The current signal selection (via jumper J17) requires a power supply for operation.

The power can be sourced from the encoder terminals (4 and 9) or from an external

15V power supply. See tables 7.3 and 7.8, terminals 10 and 11, for more

information. The analog output signal is available through the terminal strip.

• A snubber resistor braking signal

The 1-60 HP Regulator board provides a signal for use by an optional snubber

resistor braking kit for 1-10 HP drives. The signal is available through the terminal

strip.

Three Regulator boards are used on the GV3000/SE drives:

• 1-60 HP Regulator boards are used with 1-60 HP drives (M/N 1V4XXX to

60G4XXX)

• 60-150 HP Regulator boards are used with 60-150 HP drives (M/N 75R4XXX to

125R4XXX)

• 200-400 HP Regulator boards are used with 200-400 HP drives (M/N 200V4XXX to

400V4XXX).

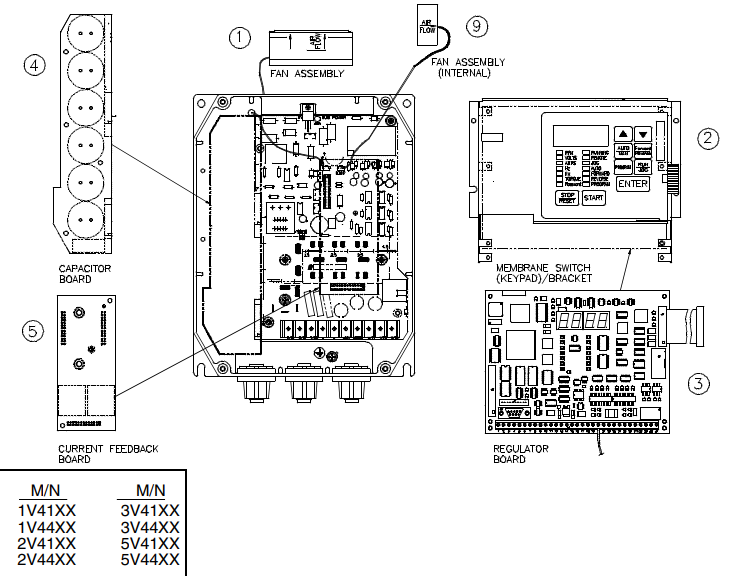

As shown in figures 2.9, 2.10, and 2.11, the Regulator boards are similar but have

different Power Module interface connectors.
