The MITX-6135 motherboard supporting the application of fully automatic coagulation analyzer has been launched

With the intensification of population aging, accelerating socio-economic development, and increasing per capita consumption levels, people's medical needs continue to be released. In vitro diagnosis, as an important means of disease prevention and treatment, has become increasingly active in industrial development. North China Industrial Control has closely followed the development trend of the times and launched a series of embedded computer products suitable for various types of in vitro diagnostic equipment.

The fully automatic coagulation analyzer is the main equipment used in hospitals for the diagnosis of hemorrhagic diseases, anticoagulation treatment monitoring, and preoperative examination. It is a routine testing equipment that is essential in clinical practice and widely used. Therefore, with the reform and upgrading of the medical industry, the performance requirements for in vitro testing equipment such as fully automated coagulation analyzers are becoming increasingly high. It is necessary for testing equipment to achieve more intelligent and automated operability and more accurate and comprehensive testing results to meet the needs of modern "smart medical" and "precision medical" services. In view of this, manufacturers put forward higher requirements for AI computing power, multi Task parallelism processing capability, reliability, etc. of the basic computer hardware used in the automatic coagulation analyzer.

In this situation, North China Industrial Control, as a specialized embedded computer product provider in the medical equipment industry, fully utilizes the advantages of embedded computer technology and adopts intelligent chips to launch a series of products with great advantages in data calculation, multiple expansion, and reliability, which can meet the application requirements of basic computer hardware for in vitro diagnostic equipment such as fully automatic coagulation analyzers. The North China Industrial Control MITX-6135 motherboard is one of them.

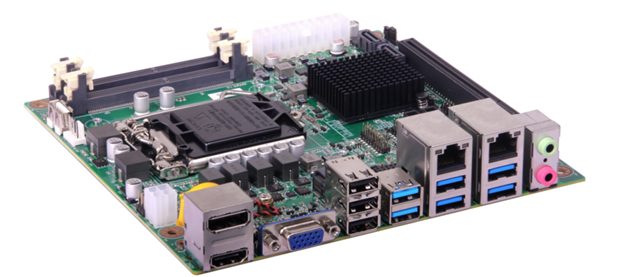

MITX-6135 is an embedded motherboard developed by North China Industrial Control based on Intel's 10th generation Core platform processor. It has a small size, high computing power, and rich functional interfaces, which can be widely used in fields such as smart healthcare, smart cities, and industrial automation.

High computing power, large memory, and excellent graphics performance

The MITX-6135 supports the Intel 10th generation Core i3/i5/i7/i9 LGA1200 65W processor and the Intel H420E/Q470E chipset, with CPU multithreading performance, improved RF frequency, and high-performance computing properties.

Support DDR4 2400/2666/2933MHz, onboard 2 * SO-DIMM dual channel memory slots, with a maximum board size of 64GB. Supports 2 * SATA (supports SATA3.0 high-speed storage), 1 * M.2 2280 KEY M (Q470E supports PCIE X4 SSDs, H420E supports SATA SSDs) to expand storage capacity.

CPU integrated display, supporting multiple display interfaces such as 1 * HDMI, 1 * DP, and 1 * VGA, meeting the 4K high-resolution display requirements.

Rich functional interface design, supporting multiple extensions

The MITX-6135 supports 2 * LAN, 4 * USB2.0, 6 * USB3.0, 1 * RS232, 1 * RS232/RS485/RS422, and 1 * M.2 2230 KEY-E WLAN/BT (Q470E supports PCIE/USB signals), supporting high-speed wired/wireless network communication and multi machine networking.

Support multiple audio interfaces such as 1 * Headphone, 1 * MIC-IN, and 1 * AMP;

Support 1 * PCIE 16x slot, 1 * CPUFAN (supporting speed regulation), 1 * PS2 KBMS, 8 * GPIO, 1 * TPM and JLPC extension serial ports (paired with AFC-385C extension serial port), PCIE5678 extension 4-way PCIEx1 signals, meeting various peripheral access requirements.

High reliability and strong usability

The MITX-6135 supports the watchdog function and is compatible with Windows 10/11 and Linux operating systems, providing a more stable and easy to maintain system operating environment.

Standard ATX power supply, supporting refined power consumption management, with wide temperature operation properties, can operate stably under various conditions such as complex electromagnetic environments.

In addition, North China Industrial Control can also provide customers with customized production services for supporting AI functional applications with X86 architecture and ARM architecture, as well as diversified embedded quasi systems/complete machines and industrial computers.
