SCXI-1325 National Instruments HIGH-VOLTAGE TERMINAL BLOCK
Product information:
Brand:National Instruments Model number:SCXI-1325
Lead Time:3-day working da Country of origin: United States
Price: Please contact us Product weight:0.170kg
HS: 8517623990
Product technial information:

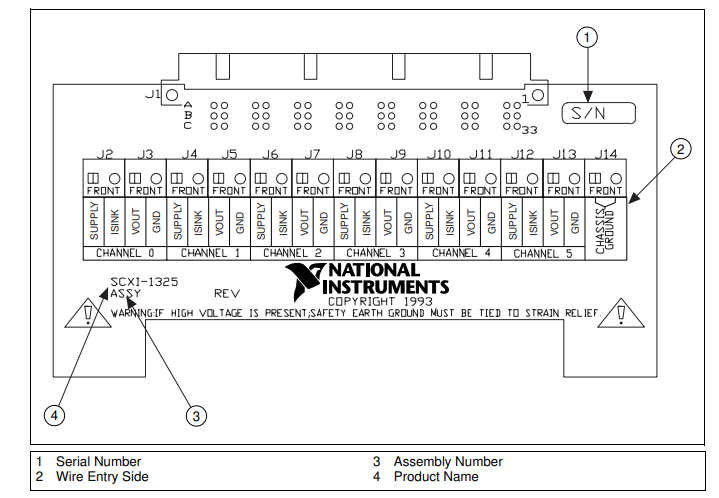

The SCXI-1325, 32-channel isothermal terminal block is a shielded device
with screw terminals that connect to the SCXI-1102/B/C and SCXI-1100
modules. The SCXI-1325 has a high-accuracy thermistor cold-junction
temperature sensor, and an isothermal copper plane to minimize the
temperature gradients across the screw terminals when you take
measurements with thermocouples.
The terminal block has 78 screw terminals for easy signal connection.
Thirty-two pairs of screw terminals connect to the 32 differential inputs
of the SCXI modules. One pair of terminals connects to the chassis ground
pins of the module. Three terminals connect to the SCXI module OUTPUT
and AOREF pins and to the SCXIbus GUARD. All of the other
terminals—OUT0+, OUT0–, OUT1+, OUT1–, OUT2+, OUT2–, OUT3+,
OUT3–, and AIREF—are reserved for future use.
For each input channel, the terminal block has a pullup resistor connected
between CH+ and +5 V and a bias resistor connected between CH– and
chassis ground. These resistors help you detect open thermocouples by
saturating the module amplifier output.
