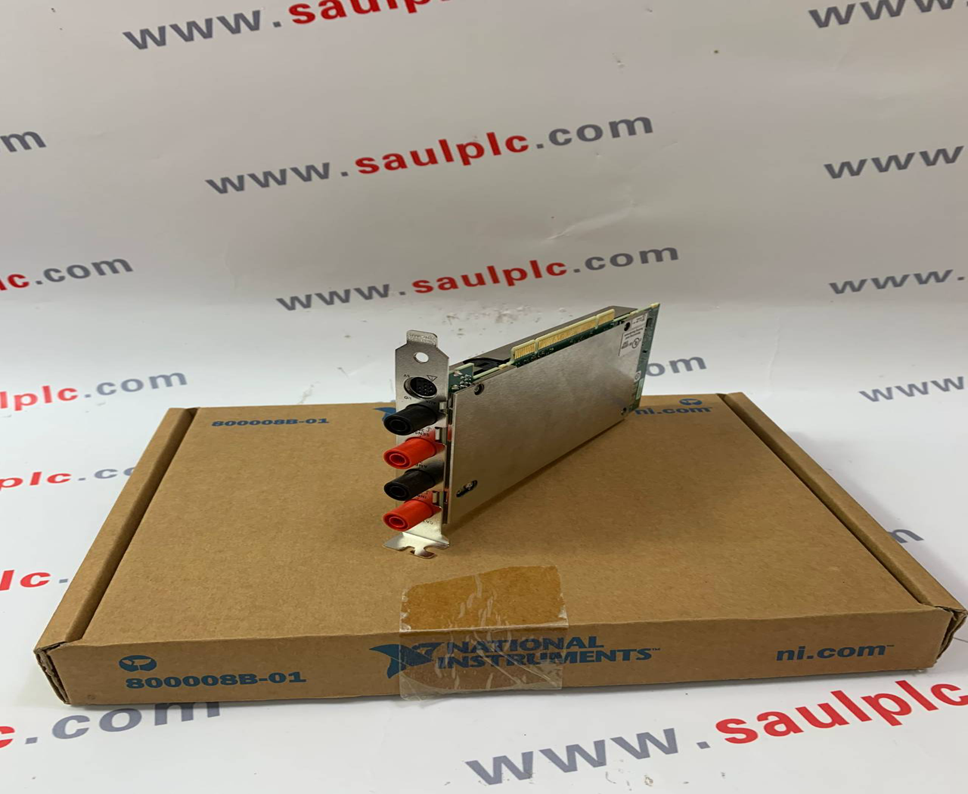

PXIE-4310 National Instruments

PXIE-4310 National Instruments Data Aquisition Card

Product information：

Brand：National Instruments                             Model number：PXIE-4310

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.165kg

HS: 8517623990

Product technial information：

For signals with source impedance >100 Ω, it is important to maintain a balanced source

impedance, which means that both terminals of the source have equal impedance to the signal

source ground. Providing a balanced source impedance is critical to achieving optimal noise

rejection, since any noise pickup will induce a noise voltage common to both conductors, which

can then be rejected by the analog input Programmable Gain Instrumentation Amplifier (PGIA).

Noise pickup in a system with an unbalanced source impedance will induce noise voltages of

different amplitudes on each conductor, which appears as a differential voltage that will be

measured as a signal voltage. Additionally, if the isolation voltage (VISO) is a time varying

voltage or noisy DC source, a balanced source impedance is critical in ensuring that VISO is

common to both inputs, which maximizes the ability of the PGIA to reject VISO. A mismatch in

the source impedance can cause a portion of VISO to appear as a differential voltage between AI+

and AI-.

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.
