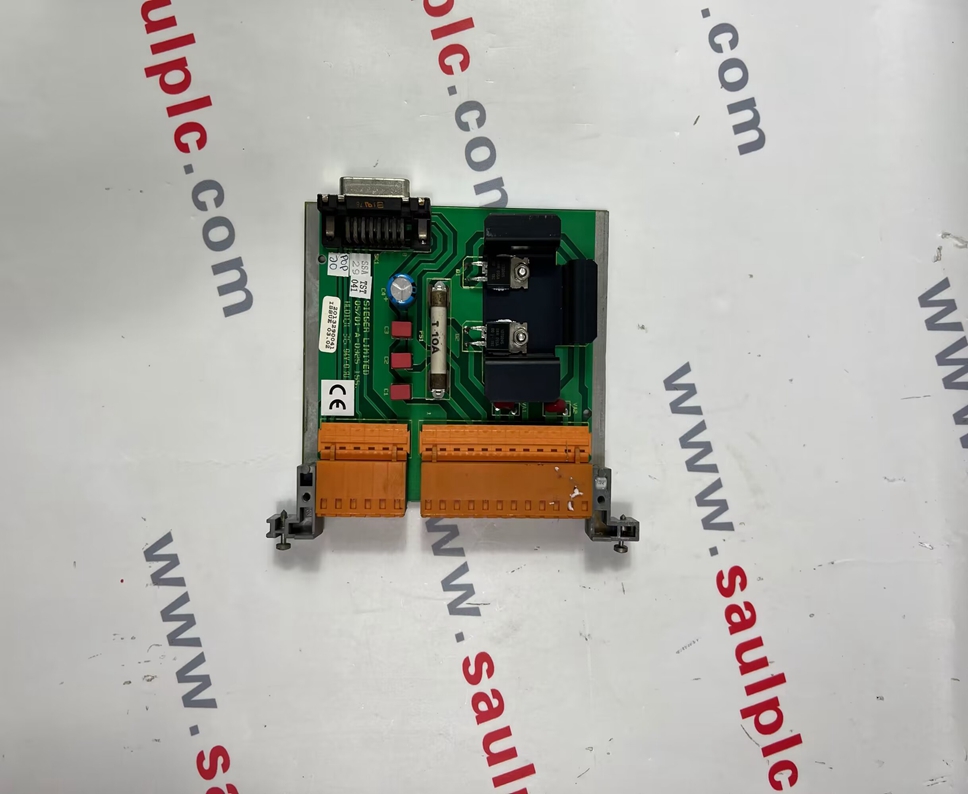

05701-A-0325 Honeywell MODBUS Interface Module

05701-A-0325 Honeywell MODBUS Interface Module

Product information：

Brand：Honeywell                              Model number：05701-A-0325

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.145kg

HS: 8517623990

Product technial information：

An outline RS485 connection diagram is shown in Figure 4.

When configured for the RS485 mode, transceiver Channel 1 is used

in dual highway systems for the primary highway or the only highway

in single highway systems. Transceiver Channel 2 is used only in dual

highway systems where it functions as the secondary highway.

Depending upon the type of installation, operation is possible over

distances up to 1.2km (3900ft). In the multi-drop mode up to 32 nodes,

including the host, can be connected. The terminal connections are:

CH1-A, CH1-B Differential Transceiver Channel 1 (Primary).

CH2-A, CH2-B Differential Transceiver Channel 2 (Secondary).

DGND Isolated Data Ground.

In a dual highway system the MODBUS uses, at any one time, only

one of the two available highways, either the primary or the secondary.

The interface automatically switches between highways when a

communication failure is detected.

Delivery information：

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Transport: In Stock Ready for Shipment via DHL, TNT, FEDEX, UPS, ARAMEX and etc

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!  We Can transport to the world!!!

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.
