IGP10A22D1FM1 FOXBORO

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

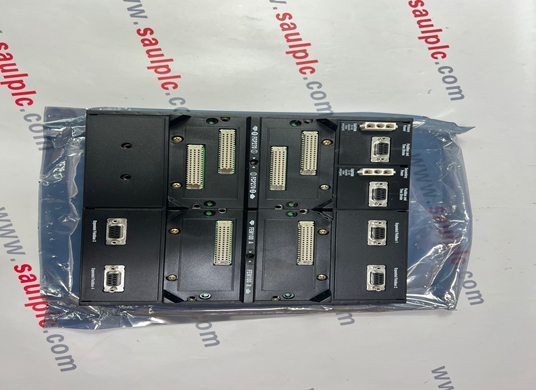

IGP10A22D1FM1 FOXBORO Power module In Stock

1. For detailed information on balun use and installation, see “Using the Cable

Balun Module with Intelligent Transmitters” in System Equipment Installation

(B0193AC).

2. Cable balun used only when multiple loops are connected to a common power

supply. The FBM negative terminals connect directly to the minus (-) terminal of

the power supply. The balun system side negative (-) terminals (2, 4, 6, and 8)

connect to the power supply positive terminals when there are 4 (maximum)

power loops.

3. For hazardous environments, install an intrinsic safety barrier such as an MTL

787S+ between the balun wiring to limit the amount of energy in the wiring.

4. A user-supplied capacitor can be installed across the external power supply(ies)

to shunt AC power.

5. The external power supply can be redundant power supplies in parallel.

6. For this transmitter connection, use twisted-pair wiring inside a shielded cable

with the shield grounded at the Foxboro DCS end.

• 8 analog input channels, each accepting one of the following inputs:

◦ Standard 4 to 20 mA analog sensor signal

◦ Digital HART Frequency Shift Keying (FSK) signal superimposed on a 4 to 20

mA analog input signal

• FSK modem dedicated to each input channel for bi-directional digital

communications with a HART field device

• Analog to digital conversion of each of the 4 to 20 mA input signals from the

HART devices

• Support for the HART universal commands necessary to interface the field device

with the Foxboro DCS database

• Per channel galvanic isolation of each of the 8 input channels from each other,

ground and module logic

• Rugged design suitable for enclosure in Class G3 (harsh) environments

• High accuracy achieved by sigma-delta data conversions for each channel

• Termination Assembly (TA) for locally or remotely connecting field wiring to the

• TA for per channel internally and/or externally loop powered transmitters.

Product details:

IGP10A22D1FM1 FOXBORO Power module

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
