FOXBORO 871FT-2D1A1C-3-ST-A

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

FOXBORO 871FT-2D1A1C-3-ST-A IO module In Stock

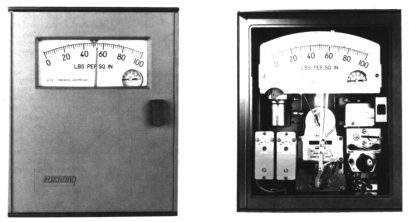

In place of the transfer system above, a 2-position nozzle seal switch is available. Moving this

switch to the manual (M) position, seals the nozzle line causing the output to increase to the supply

 pressure. The output can now be set to the desired value by reducing the pressure with an

external supply regulator furnished by the user.

Turn set point knob (or adjust remote set point, if present) so that set point index is in line with

measurement pointer. Move switch to automatic (A). Quickly increase air supply pressure to

20 psi (140 kPa).

Slowly reduce air supply pressure to output pressure, and move switch to manual (M). Valve can

now be controlled with regulator.

For on-off, differential gap, or automatic shutdown controllers, see page 14.

1. Make sure that measuring system is properly installed and operating.

2. Set control dial so that index points to desired control action (output either increases

or decreases with increasing measurement).

With latch in lowered position (as shown below), control dial cannot be accidentally

rotated to area of reverse control action.

To reverse control action, push up latch and rotate dial so that latch is on other side of

stop, then push down latch (see figure below).

3. Turn PROPORTIONAL BAND adjustment (on control dial) to 400 or to safe high

value.

Turn DERIVATIVE adjustment (if present) to 0.05.

Turn RESET adjustment (if present) to 50 or safe high value.

4. Open shutoff valves and close bypass valve.

5. Turn set point knob (or adjust remote set point, if present) so that set point index is at

desired value.

6. If controller is not equipped with optional automatic-manual transfer, proceed to

Step 7. If controller is equipped with transfer, start up in manual as follows:

a. Move transfer switch to manual

Product details:

FOXBORO 871FT-2D1A1C-3-ST-A IO module

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
