823DP-I3S1SM2-BM FOXBORO

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

823DP-I3S1SM2-BM  FOXBORO IO module In Stock

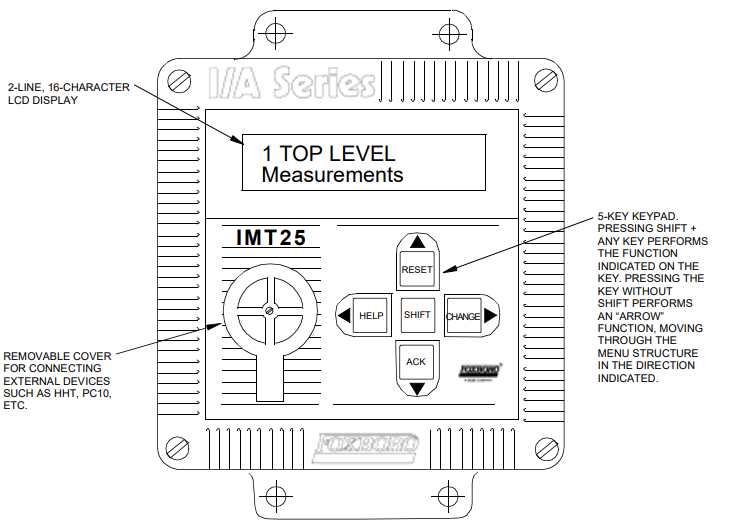

To make changes to the configuration, go to 1 TOP LEVEL Setup by pressing the Down

arrow key three times. The procedure to change your configuration will be demonstrated with

the example of a process requiring an EGU rate display in GPM, an analog output, a forward

unidirectional range of 0 to 150.0 GPM, and a meter factor of 18.22. To make the required

configuration changes:

1. In the Default Screen section of Appendix B, note that the factory Rate Display is

already configured as GPM, so no change is required.

2. In the 3 OUTPUTS section of Appendix B, note that you may have to change the

Output Mode from digital to analog. To do this:

a. Go to Setup Level 2 by pressing the Right arrow key. Next move to 2 SETUP

Outputs with the down arrow key. Then move to 3 OUTPUTS Output Mode

with the Right arrow key.

b. Use the Right arrow key to move to OUTPUT MODE? {Digital}. The curly

brackets indicate that the Digital status is editable. See Figure A-8 for a pictorial

 representation of this and other output changes.

c. Press the Shift + Change key to enter Edit mode. You will be asked “Go OffLine?”

 Reply yes by pressing the right arrow key. The display will show OUTPUT

 MODE? [Digital]. The plain brackets show that you are in edit mode.

d. Press the Down arrow key to display Analog and press the Right arrow key to

enter this selection. The display will read OUTPUT MODE? {Analog}. Press

the key again to return to 3 OUTPUTS Output Mode.

Product details:

823DP-I3S1SM2-BM  FOXBORO IO module

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
