823DP-I321NL2 FOXBORO

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

823DP-I321NL2  FOXBORO Power module In Stock

1. For a loop load resistance of 880 Ω, the supply voltage can be any value from 30 to

42 V dc.

2. For a supply voltage of 24 V dc, the loop load resistance can be any value from zero to

594 Ω.

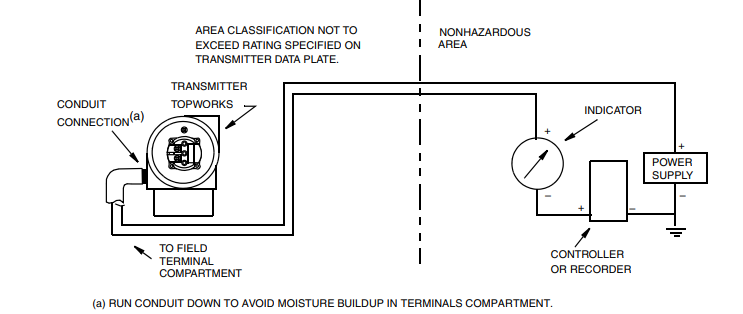

To wire one or more transmitters to a power supply, proceed with the following steps.

1. Screw in cover lock (if present) and remove the field terminals compartment cover by

rotating it counterclockwise.

2. Run signal wires (0.50 mm2 or 20 AWG, typical) through one of the transmitter conduit

connections. Use twisted single pair to protect the 4 to 20 mA output from electrical noise.

Screened (shielded) cable may be required in some locations.

3. If shielded cable is used, earth (ground) the shield at the power supply only. Do not

ground the shield at the transmitter. Cut and/or tape the shield so it cannot contact the

metal housing.

4. Plug unused conduit connection with the 1/2 NPT, PG 13.5 or M20 metal plug provided (or

equivalent). To maintain specified explosionproof and dust-ignitionproof protection, plug

must engage a minimum of five full threads. Thread sealant is recommended.

Product details:

823DP-I321NL2  FOXBORO Power module

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
