2AT-SBM FOXBORO

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************

2AT-SBM  FOXBORO Power module In Stock

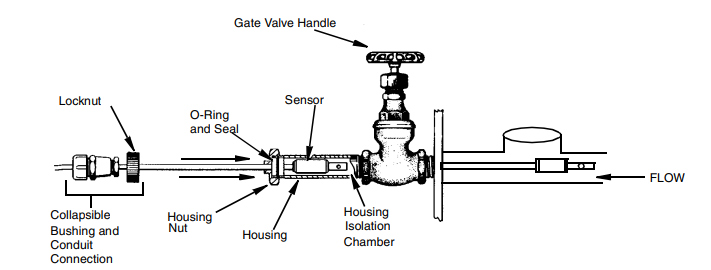

1. Disassemble the locknut and the housing nut from the installed gate-valve assembly

 housing

2. Select the appropriate Mounting Design (-D or -M) gate-valve insertion sensor

for the application.

3. Assemble parts onto the gate-valve insertion sensor cable as shown

4. Lightly lubricate insertion shaft with silicone grease (or equivalent).

5. Slide the ptfe shock absorber and the O-ring and seal onto the insertion shaft

until the shock absorber is against the sensor assembly

6. Slide housing nut onto the shaft to a position just beyond the shaft stop.

7. Slide the locknut against the shaft stop.

8. Slide the collapsible bushing and conduit connection onto the end of the shaft.

(Do not tighten.)

9. Turn the gate-valve handle clockwise (see Figure 10) until the valve is completely

seated (closed).

10. Fill and pressurize the process line or tank as required. Check for and eliminate

leaks.

11. Insert the gate-valve insertion sensor into the housing isolation chamber until

the O-ring and seal are seated into the end of the housing

12. Tighten housing nut onto end of housing.

Product details:

2AT-SBM  FOXBORO Power module

Contact information：

Contact person：Luna Chen

Email Address:：sales6@saulplc.com

WhatApp： +86 13358378970

We look forward to your inquiry and will get back to you as soon as possible.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
