Emerson DeltaV 5X00419G01

Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!

*******************************************************
Emerson  DeltaV 5X00419G01 Power module In Stock

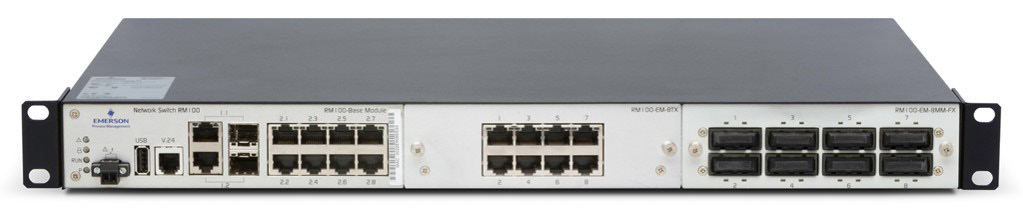

Up to 26 ports Fast Ethernet/Gigabit Ethernet Industrial

Workgroup Switch.

Ports Available:

Base module has 10 ports: two uplink ports (10/100/1000 Mbps copper / SFP ports – VE6050 transceiver modules compatible)

and eight 10/100 Mbps copper ports in a ffxed conffguration.

The VE6048 switch supports expansion media modules (VE6049) that can add up to sixteen 10/100 Mbps extra ports.

Each media module has eight ports including copper, ffber, or SFP ports.

The VE6046 and VE6047 are not modular switches and are ffxed at twenty-four 10/100 Mbps copper ports and eight

10/100 Mbps copper ports respectively. Both switches have two additional 10/100/1000 Mbps uplink copper / SFP ports.

Power Requirements

Operating Voltage: 100 - 240V AC, 47 - 63 Hz

Rated Current 0.2 – 0.4 A

Mechanical Construction

Dimensions (W x H x D): 448 x 44 x 310 mm (17.64 x 1.73 x 12.20 in) – without mounting bracket

Mounting: 19” control cabinet

Weight: 3.60 kg

Protection Class: IP20

Interfaces

Power supply/signaling contact plug-in terminal block (max. 1 A, 24V DC / 24V AC)

V.24 interface RJ11 socket for serial cable connection for DeltaV Setup Wizard access

USB interface for ffash upgrades

Provided in VE#

One VE6046 or one VE6047 or one VE6048 switch with terminal block for signal contact, two brackets with fastening screws

(pre-assembled), housing feet - stick-on, and power cable.

NOTES:

- Expansion modules, Fast Ethernet SFP modules, Gigabit Ethernet SFP modules and serial cable must be ordered separately

- When rail mounted, these switches require mounting supports in addition to 10” rail mounting brackets

- All copper ports can be connected using twisted pair cables with up to 100 meters of length

- The built-in SFP module ports for these switches support any combination of VE6050 transceiver modules

- The VE6050 gigabit transceiver modules are not compatible with VE6049 expansion modules

- VE6046, VE6047, and VE6048 switches do not support stacking.

Product details:

Emerson  DeltaV 5X00419G01 Power module
