1C31110G01 DeltaV Emerson IO module In Stock

The Relay Output Terminal Block is designed for high output

current applications and requires either LS DO 24V DC DTA

CHARM or LS DO 24V DC ETA CHARM. The Relay Output

Term blocks provide a normally open and normally closed

contact with the following ratings:

„ 28.8V DC at 2.5 A switching current

„ 48V DC at 0.2 A switching current

„ 125V DC at 0.1 A switching current

„ 250V AC at 2.5 A switching current

Although any signal type can be installed in any location on the

CHARM baseplates, it is recommended that AC voltage circuits

be separated from low voltage signals to comply with safety

recommendations and to mitigate induced noise in the signals.

The Terminal Blocks contain keying posts that are automatically

set and locked to the unique position of the installed

LS CHARM. The keys prevent the insertion of an incorrect

LS CHARM during maintenance activities. They are shipped

in a neutral position and are set when a LS CHARM is inserted.

If needed, the keys can be manually reset to allow a channel

to be re-tasked for a different signal type.

LS CHARM Standard Terminal Block.

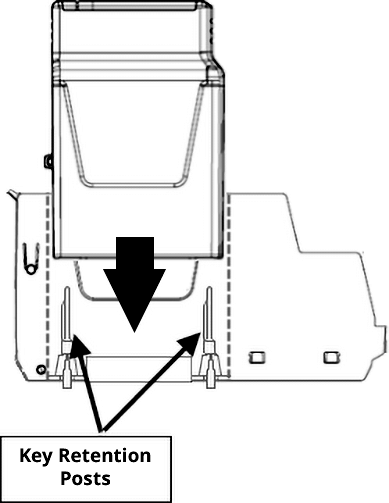

The keying mechanism consists of two keying posts that rotate

and lock into the terminal block base. Each LS CHARM type is

assigned a unique key setting.

The LS DVC Terminal Block, LS Redundant DTA Relay Terminal

Block, LS Redundant ETA Relay Terminal Block, and the

LS Redundant DVC Terminal Block have ffxed key positions

to prevent a mismatch in the ffeld.

Product details:

1C31110G01 DeltaV Emerson IO module
