Bently Nevada  146031-01

Bently Nevada  146031-01  Transient Data Interface Module

Product information：

Brand： Bently Nevada                              Model number：146031-01

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：1.16kg

HS: 8517623990

Product technial information：

Description

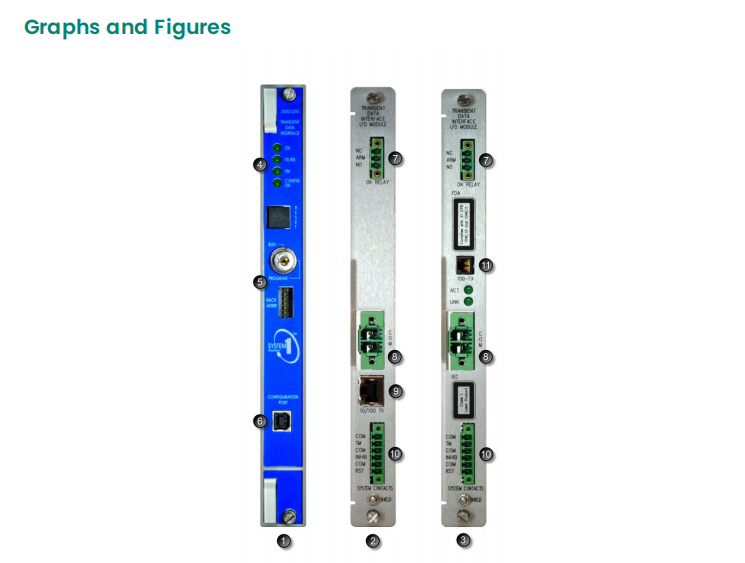

The 3500/22M Transient Data Interface (TDI) is the interface

between the 3500 monitoring system and compatible

software (System 1 Condition Monitoring and Diagnostic

software and 3500 System Configuration software). The TDI

combines the function of a 3500/20 Rack Interface Module

(RIM) with the data collection capability of a communication

processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a

3500 rack. It interfaces with M series monitors (3500/40M,

3500/42M, etc.) to continuously collect steady state and

transient dynamic (waveform) data and pass this data

through an Ethernet link to the host software. Refer to the

Compatibility section at the end of this document for more

information.

Static data capture capability is standard with the TDI.

However, using an optional Channel Enabling Disk will allow

the TDI to capture dynamic and high-resolution transient

data as well. The TDI incorporates the communication

processor function within the 3500 rack.

Although the TDI provides certain functions common to the

entire rack, it is not part of the critical monitoring path and

has no effect on the proper, normal operation of the overall

monitor system for automatic machinery protection. Every

3500 rack requires one TDI or RIM, which always occupies Slot 1

(next to the power supplies).
