B&R X20CP0483  Compact CPU processor

Product information：

Brand：B&R                           Model number：X20CP0483

Lead Time：3-day working da        Country of origin: Austria

Price: Please contact us                   Product weight：0.5kg

HS: 8517623990

Product technial information：

The CPUs in the X20 Compact-S family are available in 5 different variants. This way, customers get the product

that best meets the requirements of the machine – technically and economically.

The processor performance of the compact CPUs ranges from 166 MHz (compatible) to 667 MHz. The most

economical variant comes equipped with 128 MB RAM, 8 kB nonvolatile RAM and 256 MB flash drive. The most

powerful version of the Compact-S CPUs achieves cycle times down to 400 µs and has 64 kB nonvolatile RAM

as well as 2 GB internal flash drive.

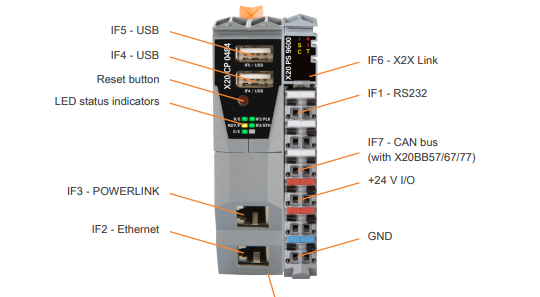

With POWERLINK, Ethernet, USB and RS232, the CPUs offer ample communication options. A CAN interface is

also available as an option. If the application requires additional interfaces, the CPU can be modularly expanded

by one or two X20 interface slots. This allows the entire product range of X20 fieldbus interfaces to be used.

The fan-free, battery-free design of Compact-S CPUs means they are completely maintenance-free.

• ARM Cortex A9 processor with 166 MHz (compatible) to 667 MHz and integrated I/O processor

• Depending on the variant: POWERLINK with poll-response chaining

• 2x onboard USB

• Up to 2 slots for modular interface expansions

• 128 to 256 MB DDR3 SDRAM

• 256 MB to 2 GB onboard flash drive

• Fanless

• No battery

• Extremely compact
