You can use the 1756-CN2R series B modules for standalone or

redundant control. For standalone control, only one set of modules is

required. For redundant control, two ControlLogix chassis are

populated with identical pairs of modules called partners. The chassis

that performs active control is called the primary chassis and the

modules in the chassis are called primary modules. The other chassis

is called the secondary chassis and the modules in the chassis are

called secondary modules.

These installation instructions discuss both standalone and redundant

control; read them carefully to distinguish the procedures and

requirements for each type of control.

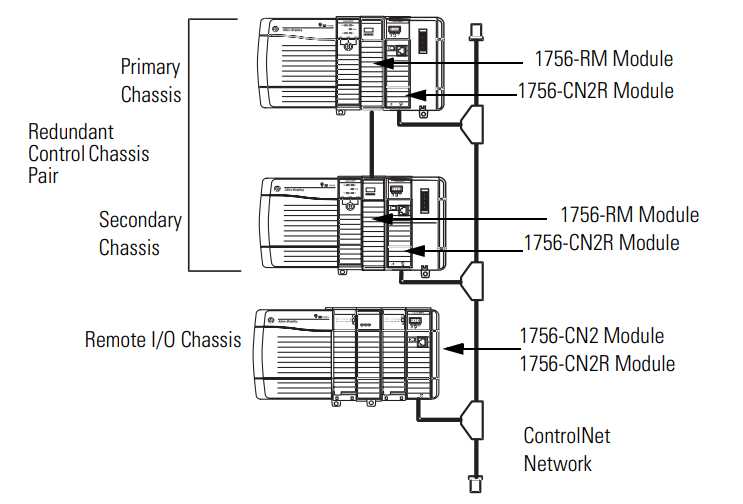

If you use redundant control, you must select the same ControlNet

network address for each set of partner modules (primary and

secondary). You must also place the partner modules in the same

corresponding slots in their respective redundant-control chassis

pair.

The 1756-CN2 and 1756-CN2R series B modules are supported in

both the local chassis (primary and secondary) and the remote

chassis (I/O chassis) of a ControlLogix redundancy system,

revision 16.5x.

The 1756-CN2 series B module is a keeper capable module. This

means that, if the module has a valid configuration and has the

lowest address among the keeper capable nodes on the network, it

becomes the Master Keeper. The Master Keeper is the node that

distributes network configuration information to other nodes as the

network is formed or as nodes are added to the network.
