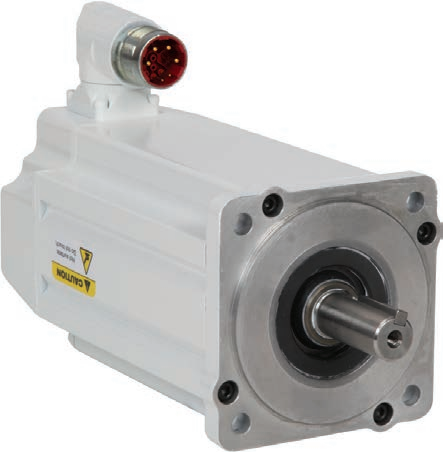

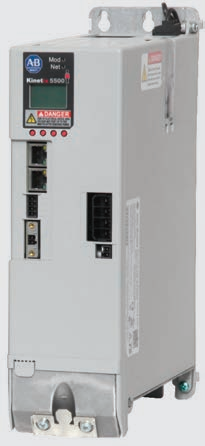

2198-H025-ERS Allen-Bradley Servo Drive and VP Low Inertia Servo Motor

Rockwell Automation has expanded its Integrated Architecture with the Kinetix 5500 servo drive with Integrated Safety option and VP Low Inertia servo motor off ering. Combined as a system, they can provide a cost-eff ective motion solution that delivers the high performance and scalability you need to compete in today’s industry. Enhancing the current midrange architecture portfolio, this motion system is designed to connect and operate with the new family of CompactLogix™ controllers using Studio 5000 Software supporting Integrated Motion on EtherNet/IP.™ With the benefi ts of this motion system, you can now run motion applications on a single control platform, using a single network – simplifying the design, operation and maintenance of equipment. With its innovative, compact design, the Kinetix 5500 requires less panel space and can be connected easily. In addition, you can reduce installation and commissioning time by using just a single cable. You can now get the feedback, motor brake and motor power all in one cable – simplifying wiring and reducing inventory. To further enhance the design, the Kinetix 5500 has dual Ethernet ports allowing for multiple topologies.

Features：

Building on the Integrated

Architecture™ midrange system, the

Kinetix® 5500 servo drives and VP

Motors enhance performance for more

applications with the following features:

• New option includes Integrated

Safety over EtherNet/IP

• Smaller footprint with optimized

power density

• Single cable including feedback,

motor brake and motor power,

all in one cable equipped with quick,

one turn connectors

• Winding options that match to

the drive ratings allowing more

effi cient system sizing

• Digital feedback device provides realtime

motor performance information

to the control system

• Capability to run servo and induction

motors all in one drive platform

• Drive power ranges of 600 W to 15kW

• Flexible power connectivity provides

multiple ways to operate the system

• Each drive catalog number supports

200V and 400V class applications

• Uses the Integrated Motion on

EtherNet/IP Encoder for auxiliary

feedback support

• Non-fl ex and fl ex cables to

optimize applications
