1783-ETAP1F Allen-Bradley

1783-ETAP1F Allen-Bradley 3-Port Ethernet/IP

Product information：

Brand：Allen-Bradley                              Model number：1783-ETAP1F

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.18kg

HS: 8517623990

Product technial information：

To install the tap on a DIN rail, proceed as follows.

1. Mount your DIN rail.

2. Use a screwdriver to open the latch at the bottom of the tap.

3. Hook the latch over the DIN rail while holding the latch open with your screwdriver.

4. Remove the screwdriver and push the latch to close.

The top figure shows using a screwdriver to open the latch so that you can remove the tap from the DIN rail. The bottom

figure shows the latch at the bottom of the tap in the open position.

Follow these steps to connect the copper Ethernet ports on the tap.

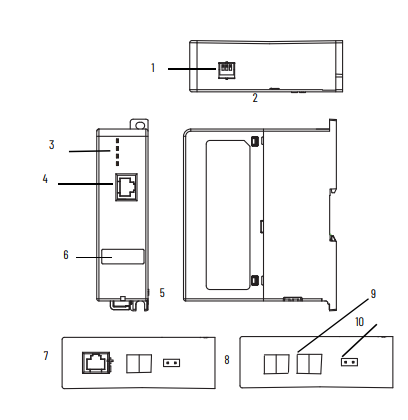

1. Locate the copper Ethernet RJ45 ports on the front and bottom of the tap, as shown in the figure.

2. Connect one end of an Ethernet cable to the front panel port used as a device port.

3. Connect the other end of the Ethernet cable to the appropriate device in your network.

4. Connect one end of a second Ethernet cable to a port at the bottom of the tap and connect the other end of the Ethernet cable to the linear or ring network.

5. Repeat with the other port at the bottom of the tap if the port is used by your network.

1. Obtain the EDS file from rok.auto/pcdc.

2. From the Network pull-down menu, choose the EtherNet/IP™ network.

3. From the Device Type pull-down, choose Communication Adapter.

4. In the Bulletin/catalog number field, type 1783-ETAP.

5. Click Search.

6. Click Download to download the EDS file for the tap.

7. Save the file to an appropriate location on your computer.

8. Use your configuration software to register the downloaded file.
