1771-ODD Allen-Bradley AC (120V) Isolated Output Module

1771-ODD Allen-Bradley AC (120V) Isolated Output Module

Product information：

Brand：Allen-Bradley                              Model number：1771-ODD

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.805kg

HS: 8517623990

Product technial information：

important pre-installation considerations

power supply requirements

installing the module

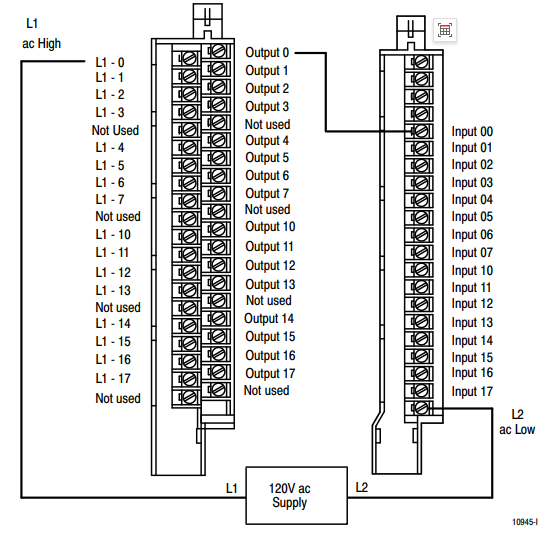

installing and connecting the wiring

replacing the fuse

using the module indicators for troubleshooting

module specifications

An output from this module can drive an Allen-Bradley Size 5 motor

starter, provided its supply voltage does not drop below 92V ac. The

maximum load current the module can deliver is 2A per channel, not to

exceed 8A total per module.

Your module’s outputs can drive the following motor starter combinations:

16 size 3 motor starters (1 per output)

10 size 4 motor starters (1 per output)

7 size 5 motor starters (1 per output)

The switching device in the output circuit is a solid-state triac. There is a

small leakage current in the off state due to both triac and capacitive

characteristics. The maximum leakage current per output is 3mA at 138V

ac. Nominal leakage current is 1.5mA. The on-state voltage drop across

the output terminals will not exceed 1.5V ac at 2A.
