1769-L33ERM Allen-Bradley Programmable Automation Controllers

Features and Beneffts：

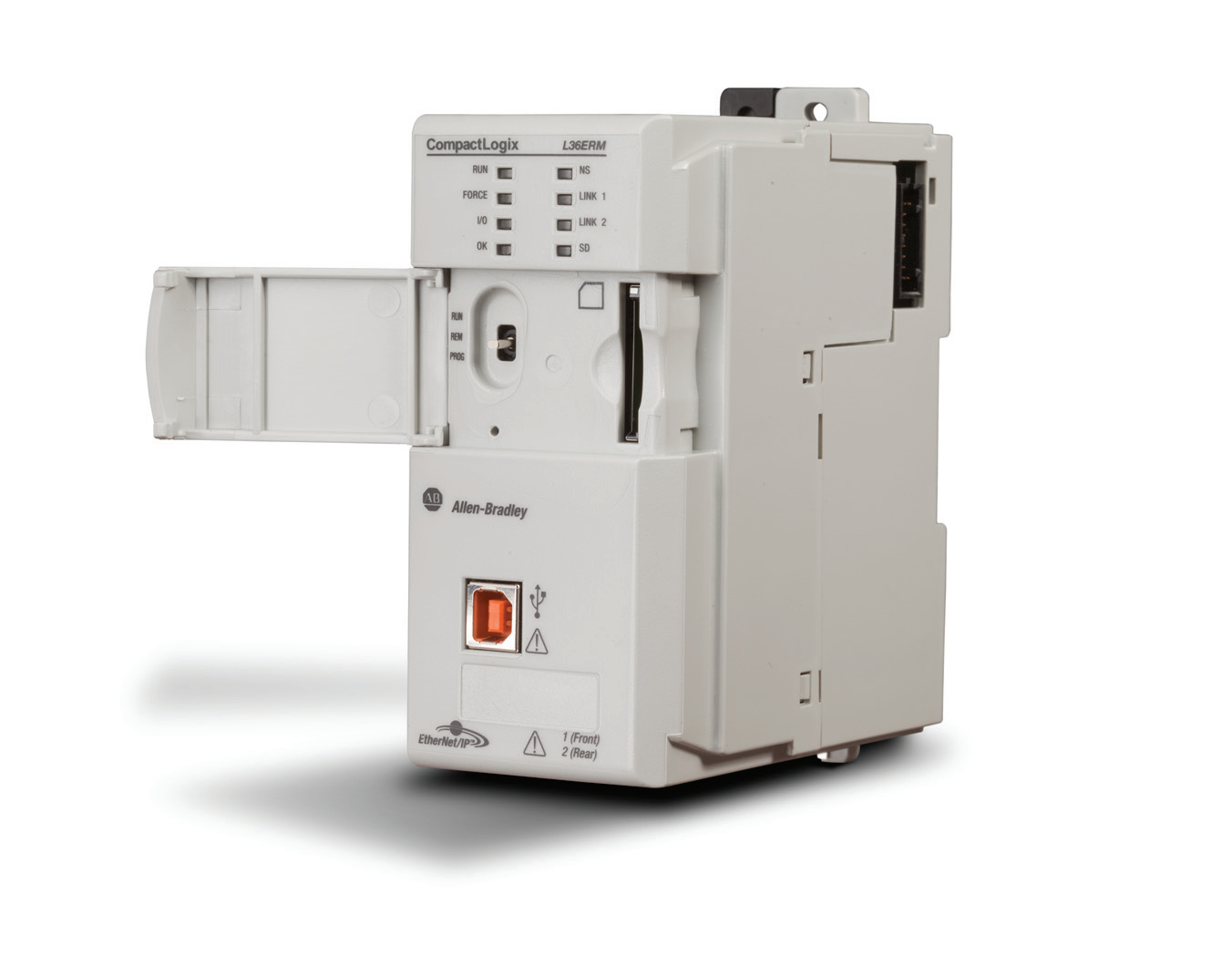

The CompactLogix 5370 L3 controllers

deliver scalable, affordable control

ideal for applications from small standalone

 equipment to high performance

indexing tables, process skids, case

packers and erectors, and packaging.

Machine builders and end users can

take advantage of the cost-saving

features of these controllers:

• Support for Integrated Motion

on EtherNet/IP

• Support for Device Level Ring (DLR)

network topologies

• Built-in energy storage eliminates

the need for lithium batteries

• Support reuse of existing 1769 I/O

• Removable 1GB secure digital (SD)

card improves data integrity

• Flexible memory options up to 3MB

• Added features for hazardous

environments (NSE version)

• Support for Kinematics eliminates

the need for additional robot

controllers and software

• Open socket capability allows

support for Modbus TCP as well as

devices such as printers, barcode

readers and servers

Expanding on the scalability of the Logix family of controllers, the

CompactLogix 5370 L3 programmable automation controllers (PAC) are

designed to meet the growing need for a higher performance controller

in a compact and affordable package.

As part of the Integrated Architecture system, the CompactLogix 5370

L3 controllers use the same programming software, network protocol,

and information capabilities as all Logix controllers, providing a common

development environment for all control disciplines.

Integrated Motion on EtherNet/IP

The CompactLogix 5370 L3 controller provides a strong motion solution

for customers looking for performance and cost competitiveness.

• Supports up to 16 axes of integrated motion

• Together with the Kinetix 350, offers cost-effective, scalable

motion solution

Network Capabilities：

With dual Ethernet ports and an integrated Ethernet switch, these controllers

now support Device Level Ring (DLR) network topologies, simplifying

integration of components in your control system and reducing system cost:

• Provides resiliency from loss of one network connection

• Allows replacement of devices one at a time without stopping production

• Reduces the number of Ethernet switches in the control system

Features for Hazardous Environments：

The No Stored Energy (NSE) version of the CompactLogix 5370 L3 offers

additional features for hazardous environments found in industries such

as mining and oil and gas.

• Allows safe transport of controller in and out of mining areas

• Powered down controller has less than 200uJ of residual energy

stored in each component

• No consequences of arc or spark to cause an explosion in

gaseous environment
