PRODUCT DETAIL

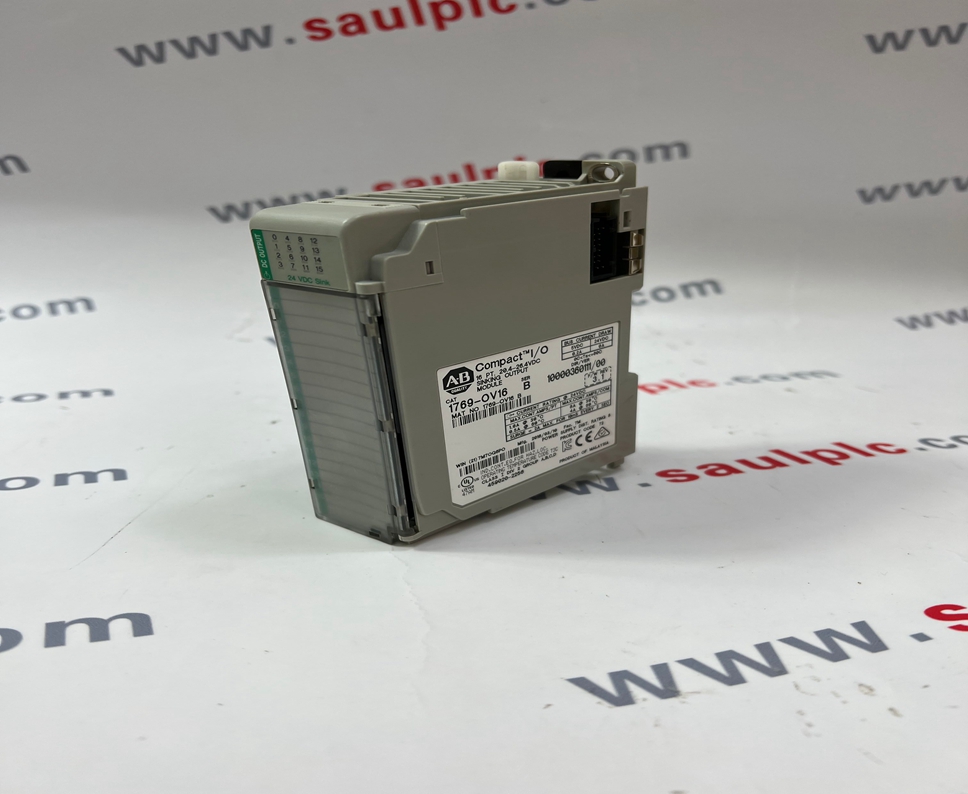

1769-OV16 Allen-Bradley output module
Product information：
Brand：Allen-Bradley Model number：1769-OV16
Condition：new Warranty: 12 month
Lead Time：3-day working da Country of origin: United States
Price: Please contact us Product weight：0.185kg
HS: 8517623990
Product technial information：
Attribute | 1769-OV16 |
Outputs | 16 (16 points/group) |
Voltage category | 24V DC sink |
Operating voltage range | 20.4…26.4V DC |
Output delay, on | 0.1 ms |
Output delay, off | 1.0 ms |
Current draw @ 5.1V | 200 mA |
Heat dissipation, max | 2.06 W |
Off-state leakage current, max(1) | 1.0 mA @ 26.4V DC |
On-state current, min | 1.0 mA |
On-state voltage drop, max | 1.0V DC @ 1 A |
Current per point, max | 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F) |
Current per module, max | 4.0 A @ 60 °C (140 °F) 8.0 A @ 30 °C (86 °F) |
Surge current(2) | 2.0 A for 10 ms, repeatable every 2 s |
Isolation voltage | Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, output point to bus 75V DC working voltage (IEC Class 2 reinforced insulation) |
Weight, approx | 280 g (0.61 lb) |
Dimensions (HxWxD), approx | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
Slot width | 1 |
Module location | DIN rail or panel mount |
Power supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
Power supply distance rating | 8 modules |
Terminal screw torque | 0.68 N |
Retaining screw torque | 0.46 N |
Wire size | (22…14 AWG) solid (22…16 AWG) stranded |
Delivery information：
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Transport: In Stock Ready for Shipment via DHL, TNT, FEDEX, UPS, ARAMEX and etc
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!! We Can transport to the world!!!
Contact information：
Contact person：Luna Chen
Email Address:：sales6@saulplc.com
WhatApp： +86 13358378970
We look forward to your inquiry and will get back to you as soon as possible.
