PRODUCT DETAIL

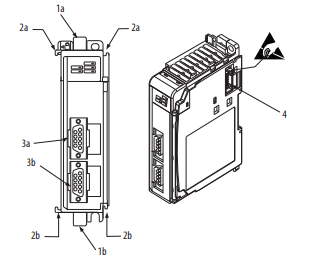

1769-ASCII Allen-Bradley Compact I/O ASCII Module
Product information：
Brand：Allen-Bradley Model number：1769-ASCII
Condition：new Warranty: 12 month
Lead Time：3-day working da Country of origin: United States
Price: Please contact us Product weight：0.180kg
HS: 8517623990
Product technial information：
The Produce buffer can include one channel's data or combine both channel's
data in one buffer from the 1769-ASCII module to the CompactBus Master. If
you configure the module to return only one channel's data in the Produce buffer,
the channel can return up to 200-bytes of ASCII data.
A CN0 bit in the Consume buffer is allocated to determine which channel’s
ASCII data the CompactBus Master is actively requesting.
If the 1769-ASCII module is configured to return both channels’ data, the
Produce buffer returns two ASCII buffers each proceeded by its associated 8-byte
header. Under this configuration, the combined length of both channels’ data
cannot exceed the module’s 200-byte ASCII buffer limit.
The ASCII data is updated when the delimiter is received, the buffer completely
fills, or when a time-out event occurs. Every time the buffer is updated, for
example, the Transaction ID is increments when the delimiter receives an
overflow condition. The data is valid only up to the received delimiter in your
memory map. The status byte represents information regarding the ASCII data
record received from the ASCII device and handshaking and buffer status flags.
The 1769-ASCII module supports a firmware handshaking protocol to prohibit
the module from overwriting input data before the CompactBus Master reads it.
If this mode is enabled, the 1769-ASCII module does not overwrite existing data
in its receive buffer.
Delivery information：
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Transport: In Stock Ready for Shipment via DHL, TNT, FEDEX, UPS, ARAMEX and etc
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!! We Can transport to the world!!!
Contact information：
Contact person：Luna Chen
Email Address:：sales6@saulplc.com
WhatApp： +86 13358378970
We look forward to your inquiry and will get back to you as soon as possible.
